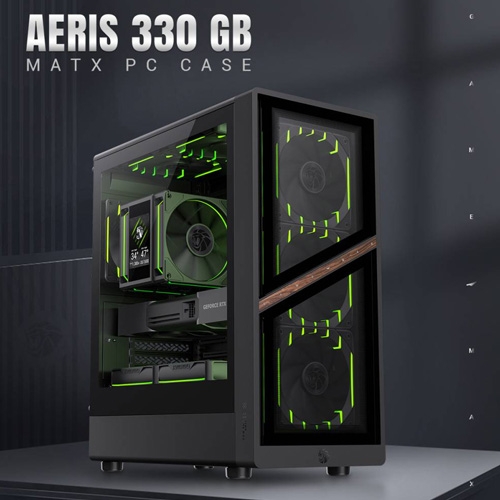

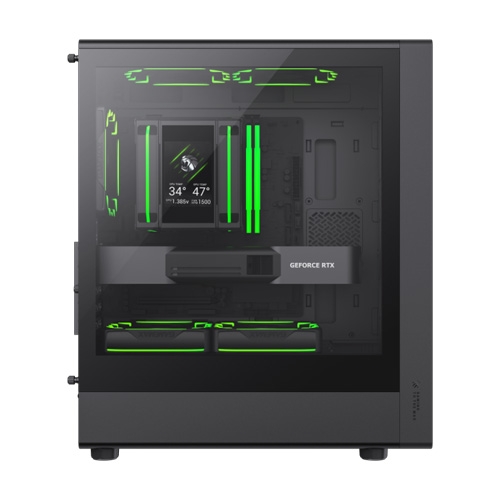

Form Factor:
Mini Tower
Chassis:
SPCC :0.4mm
PSU Form Factor
Bottom/ATX
M/B Form Factor:
M-ATX、ITX

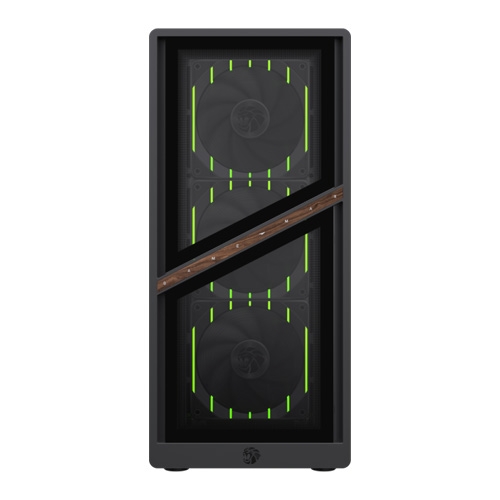

Front Panel:
Plastic + Mesh
Top Panel:
Metal

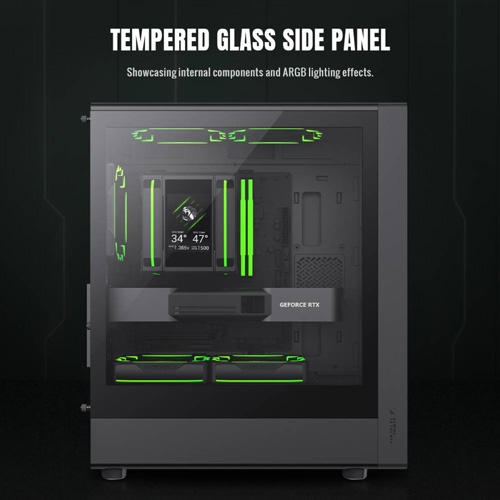

Side Panel:
Left:
Tempered Glass
Right:
Metal cover
External Drive Bay(s):
5.25”(ODD):
*0
3.5”:
*0
Internal Drive Bay(s):
3.5" (HDD):
1*3.5HDD+5*2.5SSD or 2*3.5HDD+3*2.5SSD or 2*3.5HDD+4*2.5SSD or 3*3.5HDD+2*2.5SSD

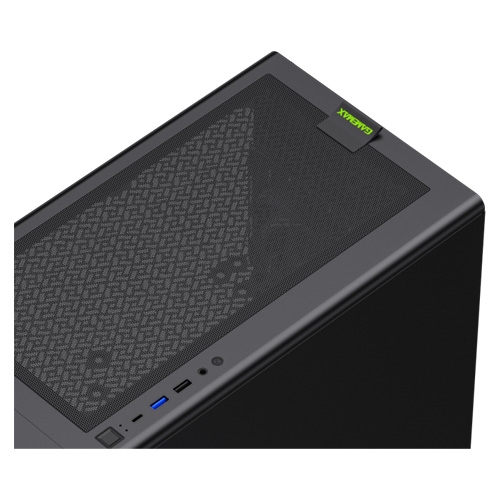

I/O:
Buttons:
*2
USB 2.0 Port(s):
*1
USB 3.0 Port(s):
*1
Type C Port(s):
*1(U3)
Audio Support:
*1(Combo AUDIO)
Card Reader (Support):
*0
P-Lock：
*0
RGB Controller：
*1(6Ports PWM ARGB HUB)
Controller Max Fans:
*6
RGB Controller max. LED strips：
*6
Remote (IR or RF)：
*0

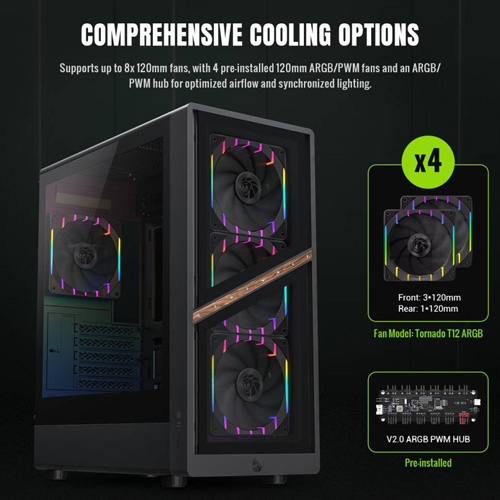

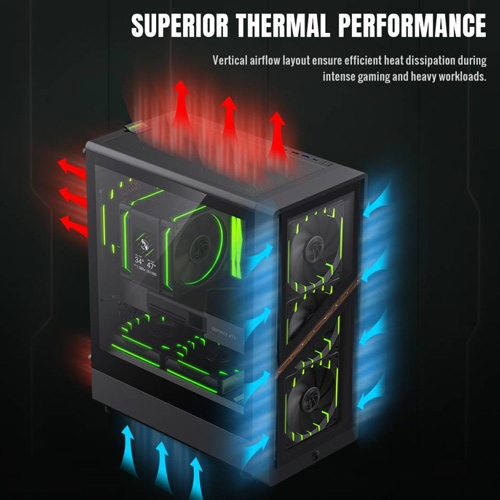

Cooling Fan Support:
Front:
3x120mm (Tornado T12 ARGB)
Top:
3x120mm ,2x140mm (Fan optional)
Rear:
1x120mm (Tornado T12 ARGB)
Bottom:
*0
M/B Cover：
*0
PSU Cover：
*2x120mm (Fan optional)
Water Cooling Support
(Radiator Size):
Front:
120mm, 140mm,240mm,280mm,360mm
Top:
120mm, 140mm,240mm
Rear:
120mm
M/B Cover：
*0
Dust Cover:
Dust mesh on the top and bottom
Slots:
*5
Carton & Logo:
GAMEMAX
Dimensions:
Chassis:
(L)340*(W)200*(H)436mm
Full Case (Inc Fascia):
(L)386*(W)200*(H)449mm
Carton:
(L)486*(W)255*(H)433mm
Net Weight(kg):
6.3
Gross Weight(kg):
7.25
VGA Support:
up to 330mm
Vertical Graphics Support
No
CPU Cooler Height:
up to 155mm
SPS Length:
up to 160mm
Cable Management Depth:
19mm
