FAN Specifications FN12A-N2
Dimensions: 120 x 120 x 25mm
Fan Frame Colour: Black
Fan Blades / Colour: 9 / Black / Axial aluminum CD pattern
LED Qty / Type: Outer ring 16PCS
Bearing Type: Hydraulic Bearing
Fan Speed: 800~2000 rpm ± 10%
Max. Air Flow : 53.87 CFM MAX
Max. Static Air Pressure: 1.98mm - H2O MAX
Noise Level (max.): 33.7db(A) MAX

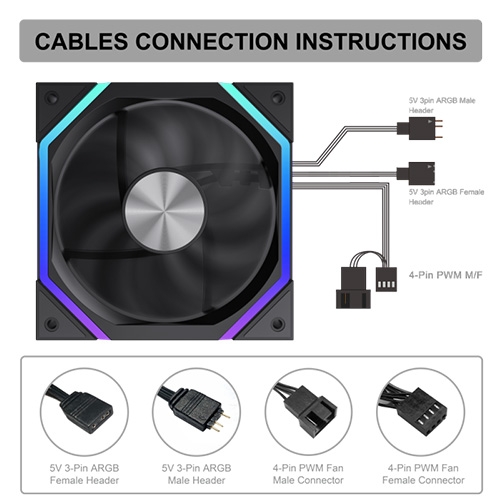

Cable Length : 4pin(M/F) PWM Power / 3pin Aura Male head / 3pin Aura Female head, 500/500/500mm
Accessories: Screws
Connectors: 3pin AURA Male head & 3pin AURA Female head & 4pin PWM Power(M/F)
Rated Voltage: 12V
Rated Current (max.): 0.2A
Rated Input Power: 2.4W
Test Voltage : 12V
Start Voltage: 5V
M.T.B.F.: 30,000 hrs
